DP163

Bluesbucker® DP163

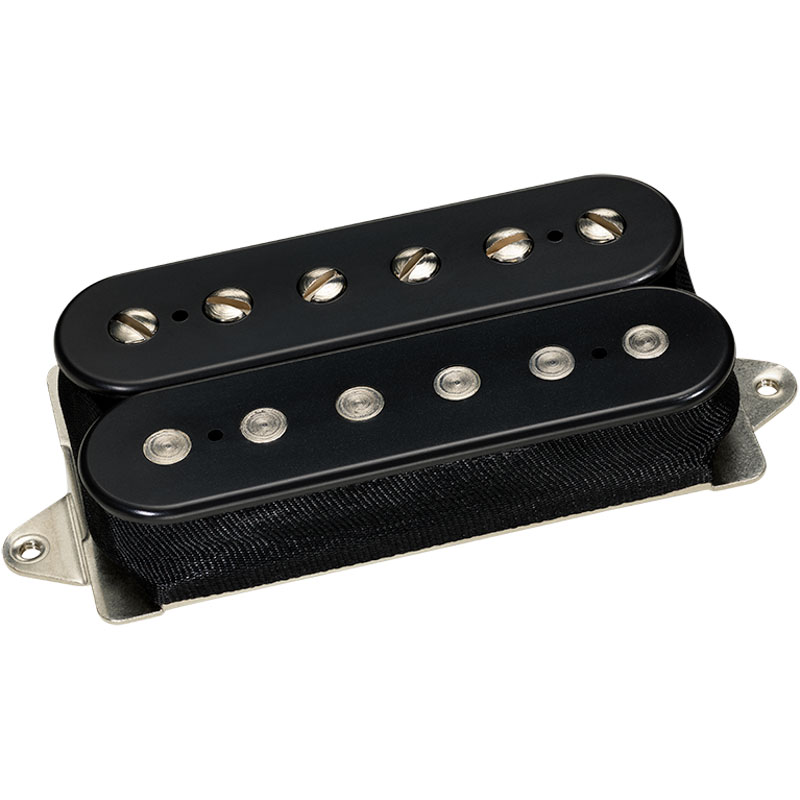

And now for something completely different: the Bluesbucker® looks like a standard humbucker, but sounds like a P90 and cancels 60-cycle hum as effectively as the average humbucker. This means any guitar with standard size humbuckers can now have the sound of P90s without altering the guitar in anyway and without noise. Patented Virtual Vintage® and Airbucker™ technology let the Bluesbucker® “see” a narrow string window like a true single-coil, making it extremely sensitive to playing dynamics. When a pair of these pickups are on together, they achieve the open, slightly hollow sound that two single-coils produce. Splitting the pickup produces a sound similar to that of a Strat® pickup, with very little drop in output.

Recommended For

All positions

Tech Talk

The coil with the 6 adjustable slotted poles is the “hot” coil. The coil with the solid poles is along for the ride to cancel hum and look cool. Since one coil is doing most of the work, the direction the Bluesbucker® is installed makes an obvious difference in the sound. When the hot coil is closest to the bridge, the sound is brighter towards the neck is warmer. Even though the look is a little nontraditional, we like the sound of the bridge pickup “backwards” (with the screw coil towards the neck). With a Bluesbucker® in the neck position with the screw coil towards the bridge (also “backwards”) the combined sound is Tele®-like. With the neck pickup in the more traditional direction, the combination is like two P90s. The Bluesbucker® comes with special wiring instructions.

Specs

Wiring: 4 Conductor
Magnet: Ceramic

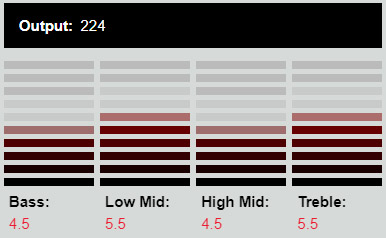

Output mV: 224
DC Resistance: 10.07 Kohm
Year of Introduction: 2001
Patent: 5,399,802 & 5,908,998
