DP189BK

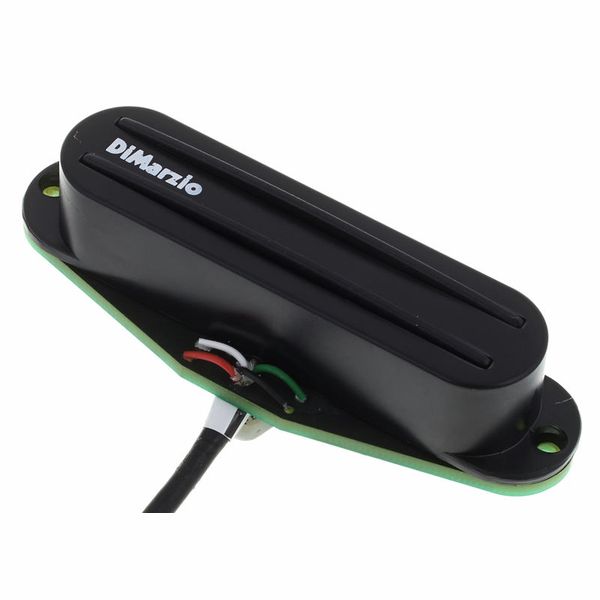

The Tone ZonexAE S DP189BK.

The Tone ZonexAE S brings the famous performance of The Tone ZonexAEto a humbucking StratxAE replacement pickup. We’ve built in the tremendous mid-range and bass response of the original Tone ZonexAE, and the same patented dual-resonance design produces great harmonics. We also took into account the likelihood of installing The Tone ZonexAE S in the classic slanted StratxAE bridge position, warming up the higher frequencies and brightening the low notes a little. It has 4-conductor wiring for parallel humbucking and split-coil modes, and makes a great bridge position combination with the Pro Track™, The Chopper™, and Fast Track 1™.

Recommended For Bridge position, solid body guitars. Neck position when a very warm jazz guitar sound is required.

Tech Talk
If you compare the specs of the full-size Tone ZonexAE with those of The Tone ZonexAE S, you will notice they don't match. That's because the trick in building a single-coil size pickup to sound like its big brother is to go for the sound rather than the numbers. We also took into account the likelihood that The Tone ZonexAE S will be installed in the classic slanted Strat bridge position, so we warmed up the higher frequencies and brightened the low notes a little to compensate.

Specs. DP189BK:
Finish: Black.
Pole rails: Black.
Quick Connect: Yes.
Wiring: 4 Conductor.
Magnet: Ceramic.
Output mV: 300.
DC Resistance: 12.39 Kohm.
Year of Introduction: 2003.
Patent: 4,501,185.
