DP223G

PAFxAE 36th Anniversary Bridge DP223G.

Here are the characteristics that make a great vintage humbucker: a soft magnetic field, sweet tone, perfect balance between warmth and clarity, the ability to go from clean to distorted by pick attack alone. For our PAFxAE 36th Anniversary Bridge we wanted to continue in the path of pioneers such as Seth Lover (designer of the original Patent Applied Forhumbucker) and create pickups that combine all of the characteristics of great vintage humbuckers. These pickups are not merely clones. We re-engineered the PAFxAE using our patented technology and Larry DiMarzio’s own 1959 cherry sunburst GibsonxAE Les PaulxAE as the reference. Larry’s GibsonxAE Les PaulxAE has a uniquely amazing sound and it’s not only due to the pickups it’s the total fusion of many elements of the guitar itself. Although the pickups have a weak magnetic field, the sound is well defined almost like a single-coil. We duplicated the weaker magnetic field in order to allow the strings to vibrate longer, as well as focus and articulate the attack and output. We use computer-controlled winders to consistently layer the 42-gauge custom-coated wire, achieving the exact frequency response we want. Then it’s dipped in our custom formula to eliminate squeal and microphonics. The cover is made from nickel-silver and our new plating makes it more magnetically transparent than the originals. The PAFxAE 36th Anniversary Neck is smooth but not muddy. It performs equally well in the neck or bridge, just as the best humbuckers from the 50s did. The PAFxAE 36th Anniversary Bridge is hotter than the Neck. It is not only for set neck 24xBEx94 scale guitars, but it’s also an excellent bridge pickup for trem-equipped bolt-ons. We’ll build the PAFxAE 36th Anniversary any way you want it. Choose the bobbin style vintage glossy or modern matte, the type of base traditional, long-legged or standard, short-legged, and the type of cable vintage single-conductor or 4-conductor. The PAFxAE 36th Anniversary Bridge is available uncovered, and we also offer three types of covers standard polished and plated, buffed with no plating, and our vintage worn cover that looks so authentic and broken in that you’ll swear it’s been hanging around since 1959.

Recommended For
Bridge position, can also be used in neck position with higher output bridge models.

Tech Talk
The PAFxAE 36th Anniversary Bridge model has the best qualities of the Virtual PAFxAE bridge and Virtual Hot PAFxAE pickups and then some. It’s as loud as the Virtual Hot PAFxAE, but has as much low-end and midrange definition as the Virtual PAFxAE Bridge Model. The highs are actually bigger and smoother than either model. The 4-conductor version also splits very well. Single-coil mode is bright, but not at all sterile-sounding.

Specs. DP103G:

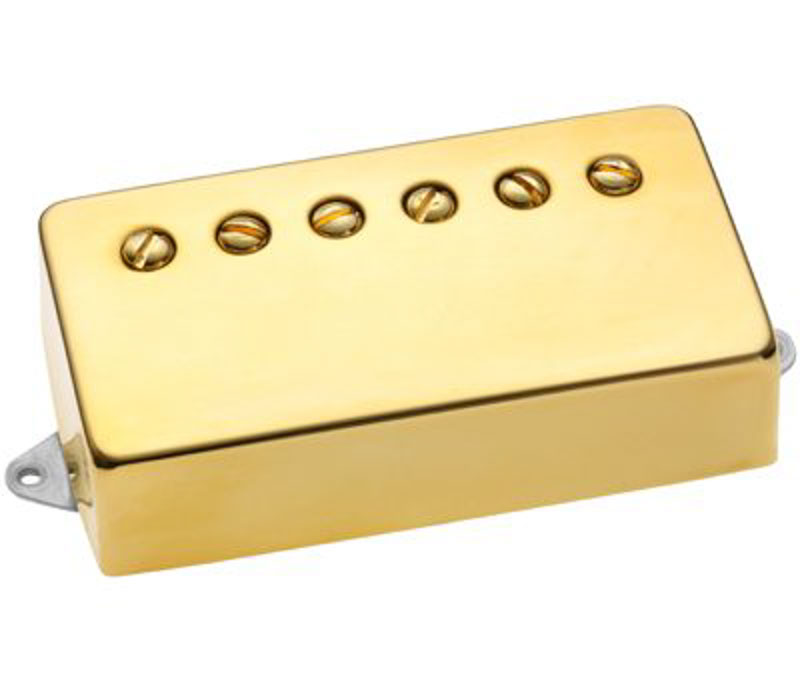

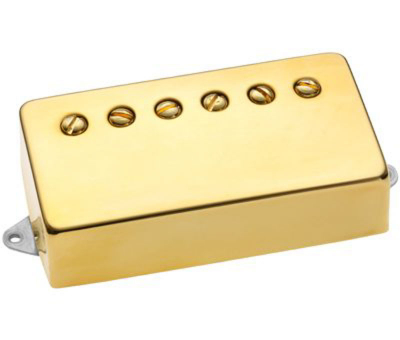

Finish: Polished Gold Cover.
Polescrews: Gold.
Wiring: 4 Conductor.
Magnet: Alnico 5.

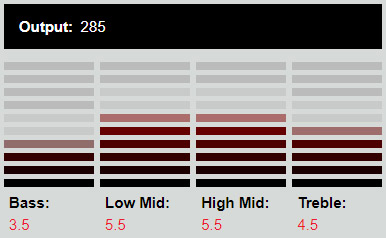

Output mV: 285.
DC Resistance: 8.60 Kohm.
Year of Introduction: 2008.
Patent: 5,399,802 & 5,908,998.
