DP234

The Black Angel™ DP234.

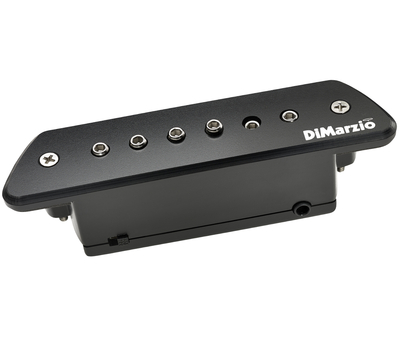

In keeping with its name, The Black Angel™, a passive magnetic soundhole pickup, is matte black in color. Like The Angel™, The Black Angel™ “hears” the entire range of the acoustic guitar from top to bottom, with no gaps anywhere. Its “feel” is just as important. The Black Angel™ tracks right- and left-hand dynamics, and responds immediately to the sound coming off the string.

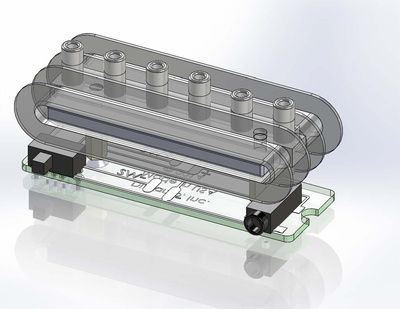

The Black Angel™ is quiet and, although it’s magnetic, it doesn’t sound electric there’s no hum and no battery. Both coils are on a parallel axis to the strings, featuring a humbucking magnetic circuit that is acoustically isolated to reduce unwanted finger and pick noises. Players who like to mix two or more pickups together will appreciate the built-in phase switch making The Black Angel™ ideal for use in any dual or multi source system, and it can be easily combined with any piezo or microphone.
The Black Angel™ installs easily and quickly in the soundhole, with no modification to your guitar, and fits soundholes of 3-1/2 inches (89 mm) and larger. The 2-1/16 “E”-to-“E” string spacing on The Black Angel™ easily accommodates guitar nut dimensions ranging from 1-11/16 to 1-3/4 inches.

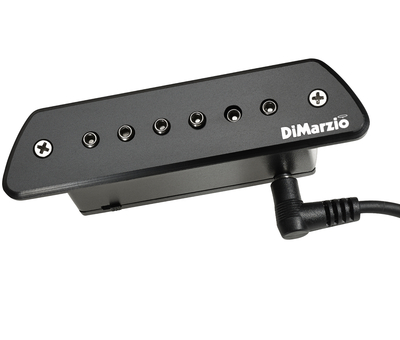

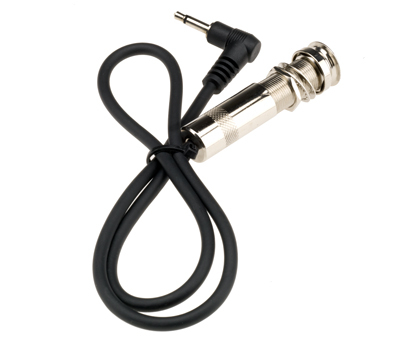

Both a 1/8-inch to 1/4-inch Switchcraft endpin jack (install version) and a quick mount 10-foot cable (standard phone jack) are included with The Black Angel™.


Recommended for Acoustic guitars with 3-1/2 inch (89 mm) or larger sound hole using bronze or steel strings.

Specs: DP234.
Finish: Black.
Wiring: 1 Conductor.
Magnet: Rare earth.
DC Resistance: 1.66 Kohm.
Year of Introduction: 2015.
Patent: n/a.
