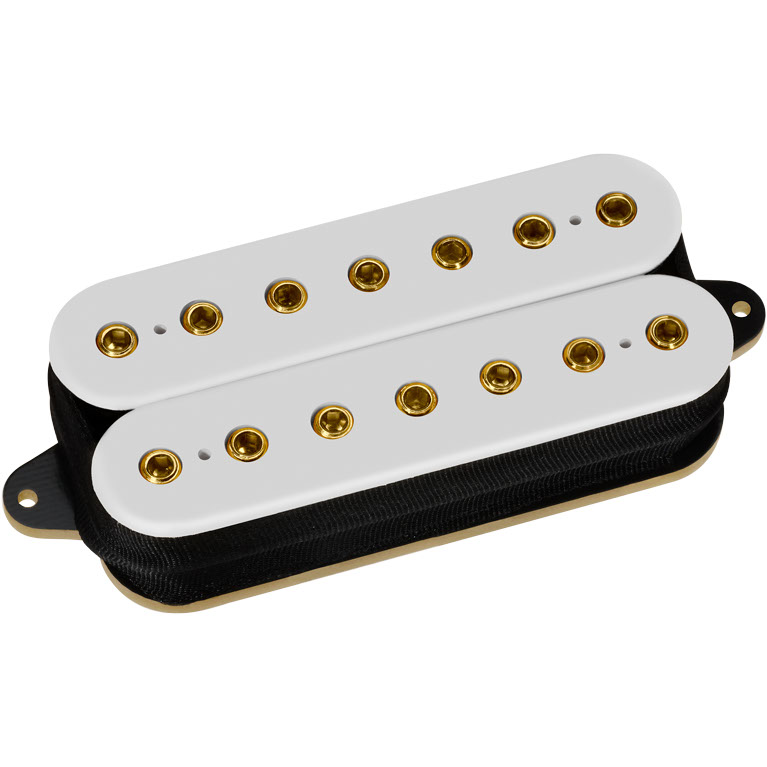

Evolution® 7 DP704W+G
The basic characteristics of the 6-string Evolution® Bridge model sound like a perfect description for a 7-string lead pickup: power, attack and presence. Combining the basic Evolution® design with Virtual Vintage® technology results in a 7-string pickup possessing crunching lows and intense highs. The output of the Evolution® 7 is concentrated towards the upper mids and treble, so there's a lot of cutting power, and the low end stays hot and clear.
Recommended For Bridge position.
Tech Talk
Making a 7-string version of a pre-existing 6-string pickup is not a simple matter of copying specs. Particularly with a high-output pickup, it's important that the low "B' string doesn't get muddy-sounding. We made the coils on the Evolution® 7 brighter sounding than the 6-string version to make sure this doesn't happen. We then used some of the same technology that went into the Virtual Vintage® design to warm up the sound of the high strings without affecting the low "B". The bass strings have a lot of clean power and the high strings cut through without sounding thin.
Specs. DP704W+G.
Finish: White.
Pole pieces: Gold.
Wiring: 4 Conductor.
Magnet: Ceramic.

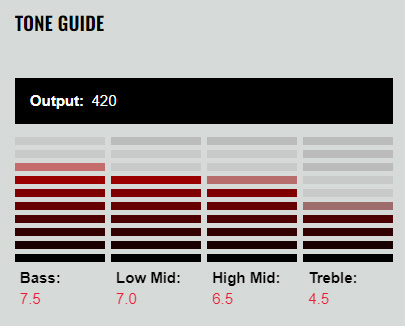

Output mV: 420.
DC Resistance: 14.09 Kohm.
Year of Introduction: 2000.
Patent: 4,501,185 & 5,908,998.
