MCR2022-100

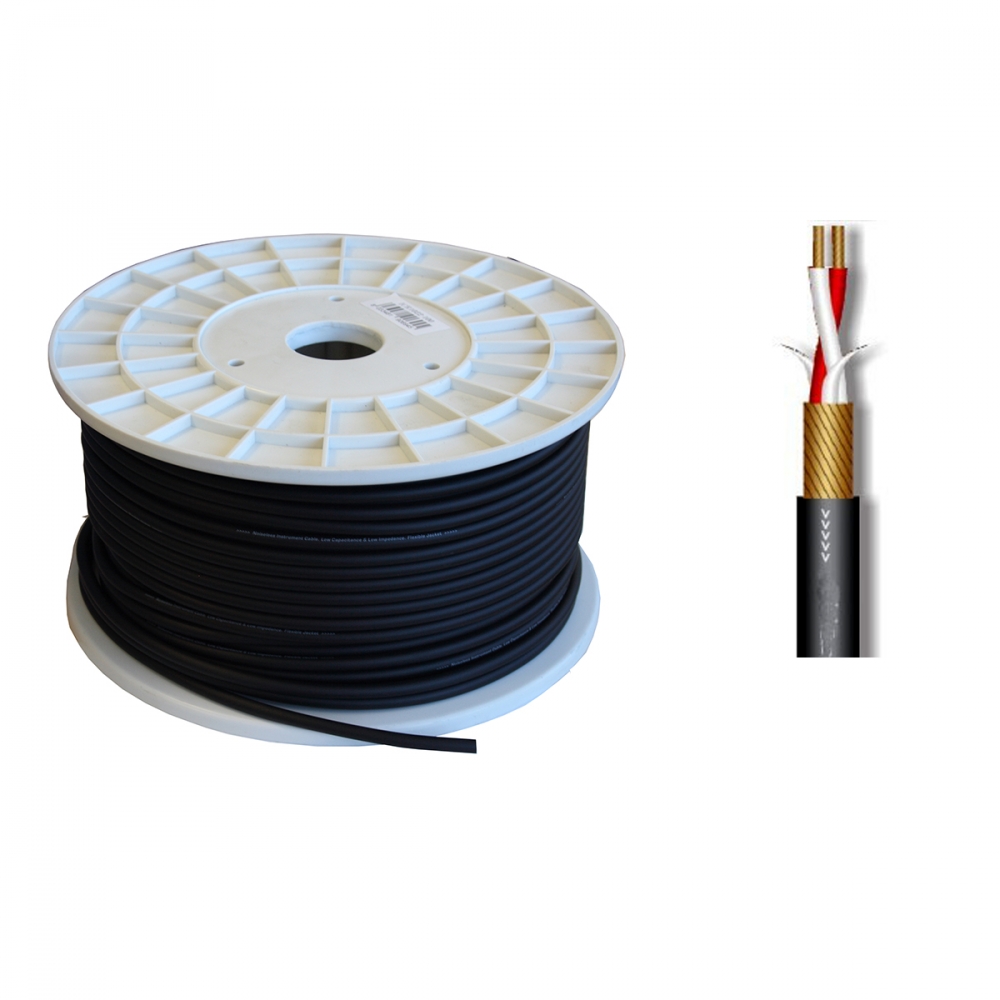

MCR2022-100. Mikrofonkabel Balancerad Metervara.

• OFC construction (Oxygen Free Copper).
• Shielding: 95% with spiral copper 80x0,10 mm.
• Inner conductors: 2x0,22 mm2.
• Copper strand per conductors: 28x0,10 mm.
• Diameter: 6 mm.
• Jacket: PVC.
• Temp. range: -20(min)/70 (max).
• AWG: 24.
• Capac. cond/cond per 1 m: 68pF.
• Capac. cond/shield per 1 m: 130pF.
• Cond. resistance per 1 km: 53 Ohm.
• Shiedl resistance per 1 km: 25 Ohm.
• Insulation resist. per 1 km: >1G Ohm.
• Surge impedence: approx 100 Ohm.
