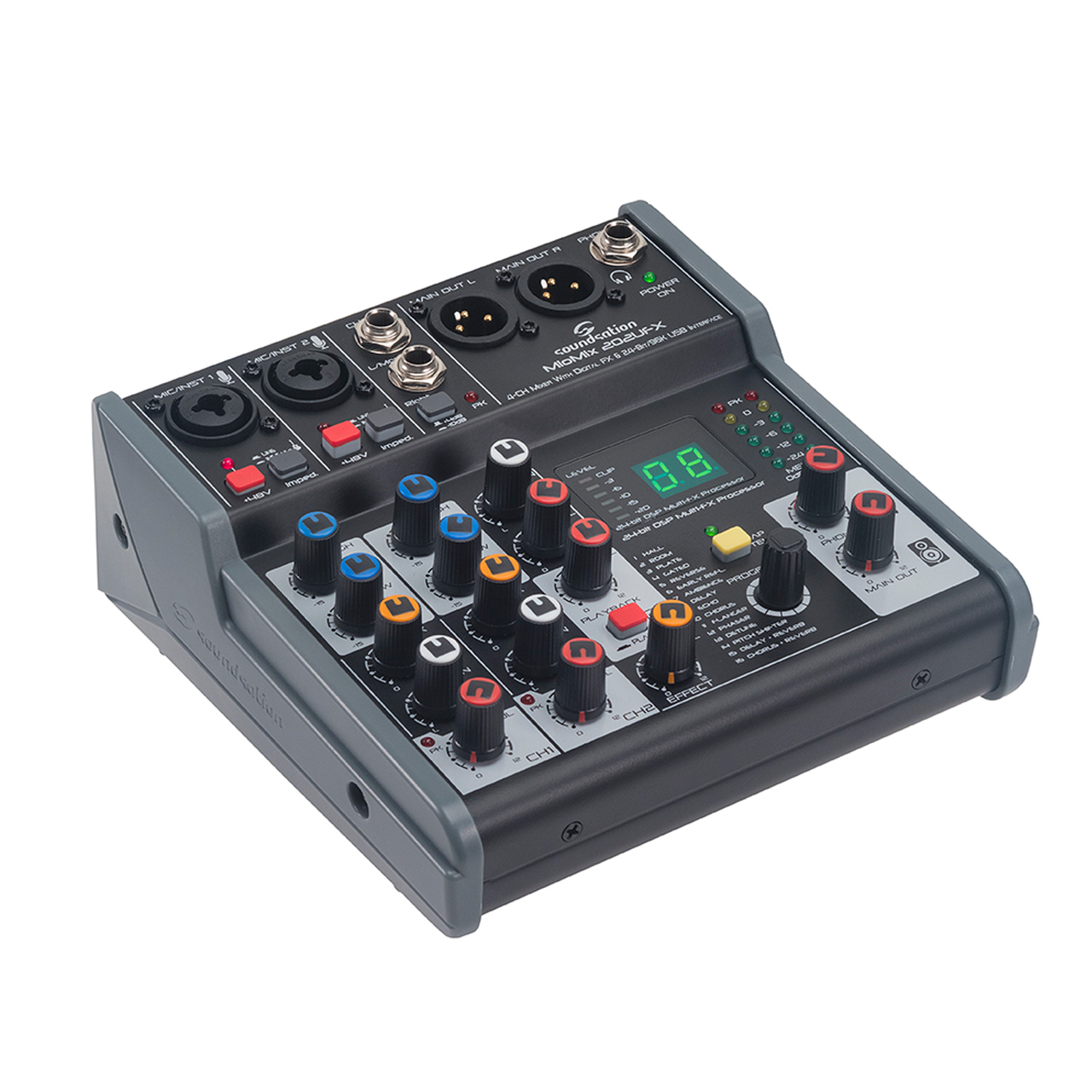

MIOMIX 202UFX. 4 Channel Mixer, USB, Bluetooth, Digital Multi-Effect.
Smidig 4-kanals mixer/ljudkort från Soundsation med Bluetooth-uppspelning samt inbyggda effekter.
Specifikationer:
Input Connections: Balanced XLR/Jack Combo (Channel 1-2), Balanced ¼" Jack (Channel 3-4)
Output Connection: Balanced XLR (Main Out L-R), Stereo ¼" Jack (Phones)
USB Connection: Type-B, Female
Channel 1-2 Functions: +48V Phantom Power, Impedance switch (Line/Hi-Z), 2-Band EQ (80Hz/12kHz +/-15dB) Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator
Channel 3-4 Functions: Impedance switch (+4/-10dB), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator
USB I/O Soundcard: Up to 24-bit/96kHz Stereo Input/Output Streaming, USB Class-2.0 compliant
Digital Effect: 24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate
Level Meter: 2x6 LED Meter
Max Output Level: 3 Vrms
Frequency Response: +/-0.5dB, 20Hz-20kHz
Dynamic Range: 102dB
THD+N @ 1kHz: =0.003%
Stereo Crosstalk: 92dB
Power Requirements: DC 5V, 0.5A
Power Consumption: Max. 2.5W
Power Adapter: 100-240Vac ? 0.15A / 5Vcc ? 1A Max (Power Adapter Included)
Size (WxDxH): 166 x 165 x 66 mm
Packing Size (WxDxH): 288 x 208 x 103 mm
Net Weight: 0.9kg
Gross Weight: 1.2kg
